LGF Rapid Response 10000CUF

ULTRAFILTRATION SYSTEM

madeintheusa

SYSTEM DESCRIPTION

The rugged LGF RR 10,000-CUF system is designed for field-use under emergency conditions. The system produces 10,000 lpd
(7 lpm) of purified drinking water using a combination of filters including: high-capacity gradient depth pre-filter, hollow-fiber ultrafiltration membrane, and granular activated carbon post-filter.

The LGF RR 10,000-CUF utilizes electrical input from an external, solar-powered DC power source. An external, submersible pump is used to draw water from a variety of feed sources including wells or bore holes, lakes, streams or holding tanks.

All system components are built into the rolling case. Feed, product and backwashing ports are positioned along the top edge of the case along with pressure gauges and system valves.
This system is light enough to be moved and deployed by one person. At 34 kgs, the system may also be checked as baggage on most commercial airlines.

FEATURES & SPECIFICATIONS

  • Hollow fiber ultrafiltration membrane removes 99.999% of bacteria, cysts and viruses
  • Pre-filter: High efficiency, gradient depth filter
  • Post-filter: 25.4cm granular activated carbon
  • External product/drain quick connect fittings
  • External standard hose-fitting feed connection
  • Prefilter in/out pressure gauges
  • Manual product, feed, drain, tank flush valves
  • Stainless steel membrane housing
  • Rugged Pelican 1650 case is unbreakable, watertight, airtight, dustproof, chemical resistant and corrosion proof.
  • 9300 Shurflo pump

OPTIONS

  • Pre-filter: High efficiency, gradient depth filter
  • Post-filter: 25.4cm granular activated carbon
  • External product/drain quick connect fittings

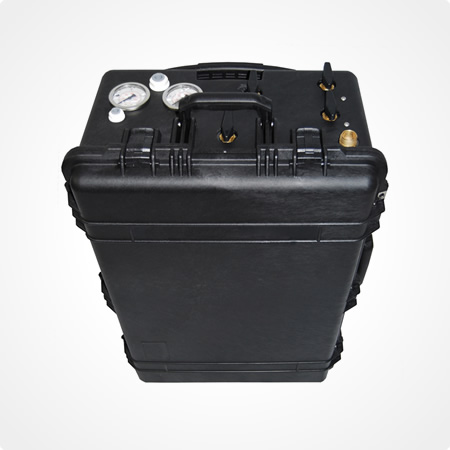

lgf rapid response 10000CUF

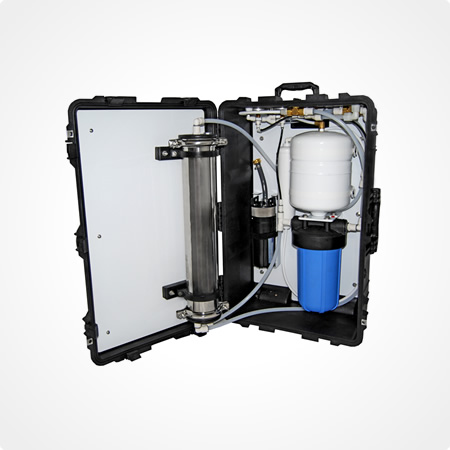

lgf rapid response 10000CUF open

System Specifications

View the system specifications by clicking here.

Model Number:

LGF RAPID RESPONSE 10000CUF

Product Rate

10,000 LPD, 7 LPM (based on feed water at 22° C)

Dimensions:

82.5cm x 52cm x 28.7cm

Weight lbs/kg

34kg

The LGF RR-10,000CUF system produces 10,000 lpd (7 lpm) of purified drinking water.
