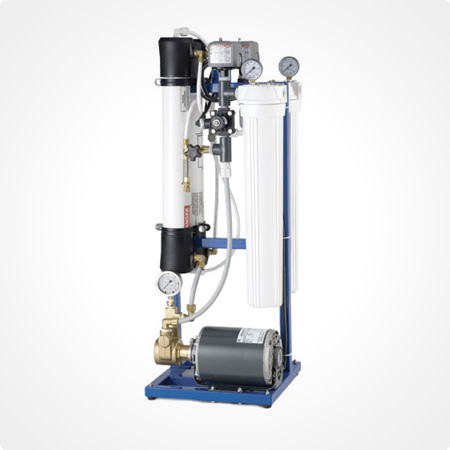

LGF F 3750 RO

LIGHT COMMERICAL REVERSE OSMOSIS SYSTEM

madeintheusa
LGF F 3750 RO

SYSTEM DESCRIPTION

The reliable LGF F 3750 RO systems produce high quality reverse osmosis water for light commercial applications. These systems feature a compact, vertical design and low maintenance powder coated frames. Manufactured in the USA.

STANDARD FEATURES

  • Thin film reverse osmosis membranes
  • PVC membrane housings
  • Brass rotary vane pump
  • Blue powder coated steel frame
  • 51cm 5-micron sediment filter
  • 51cm Slimline filter housing
  • System pressure gauge: 6.4cm, 0-300 psi, glycerin filled
  • Pre-filter out pressure gauge: 3.8 cm, 0-160 psi, dry
  • Low pressure switch
  • Solenoid valve

OPTIONS

  • TDS meter, LGF F 3750 RO
  • Flow meters: product and brine, LGF F 3750 RO
  • Pressure gauges: Post-filter out and tank
  • High pressure tank switch
  • Float switch
  • Brine control valve
  • Carbon filtration

SYSTEM SPECIFICATIONS

View the feed water requirements by clicking here.

Membrane Size

9.5cm x 79.5cm

Number of Membranes

1

Production Rate (lpd)

3750

Pump

325 gph

Motor Rating

3/4 HP

Electrical Supply

110/220V

Pre-filter

51 cm sediment

Dimensions (cms)

36 x 33 x 99

Weight

29.45 kgs

OPERATING SPECIFICATIONS

View the Operating Specifications by clicking here.

Minimum Feed Pressure

25 psi

Max Operating Pressure

150 psi

Max Hardness

15 grains

Max Temperature

40.50C

Max Chlorine (Continuous)

0.1 ppm

Max Total Dissolved Solids

5,000 ppm

pH Range

4-11

pH Range (Optimum)

5-8

Turbidity

<1.0 NTU

Silt Density Index

<5.0

Iron, Manganese, Hydrogen Sulfide

0ppm

Feed water must be potable. Must be free of potential membrane contaminants such as Iron, Hydrogen Sulfide and Manganese.

var accordion = new Accordion(‘div.summary’, ‘div.details’, {alwaysHide: true, display: -1, onActive:function(tog,el){tog.addClass(‘expanded’);},onBackground:function(tog,el){tog.removeClass(‘expanded’);}});$$(‘div.summary’).each(function(el) {el.addEvents({mouseenter: function() { el.addClass(‘highlight’); },mouseleave: function() { el.removeClass(‘highlight’); }}); });
$$(‘div.resourceItem’).each(function(el) {el.addEvents({mouseenter: function() { el.addClass(‘highlight’); },mouseleave: function() { el.removeClass(‘highlight’); }}); });

Providing clean, safe water where it’s needed most

  • Hollow-fiber ultrafiltration membrane technology to purify drinking water
  • Compact, vertical design and low maintenance powder coated frames
  • Removes 99.999% of bacteria, viruses and parasites from incoming feed water
  • The systems produce 1000-3750 lpd (depending on feed pressure and model) of purified water
  • Top quality coconut carbon post-filtration provides final polishing for the freshest taste.
  • Operation training and system maintenance are quick and simple
  • Manufactured in the USA
LGF F 3750 RO
